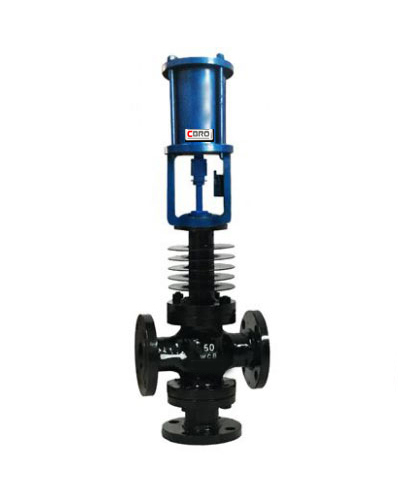

Cylinder Operated Control Valves
Our in-depth knowledge and industrial expertise allow us to offer a distinguished collection of Cylinder Operated Control Valve that regulates the flow or pressure of a fluid. This range is manufactured from high quality brass, stainless steel or carbon steel as per the international standards under the supervision of our skilled professionals. Cylinder Operated Control Valve is suitable for traditional and micro computer type electric control. Clients can avail this range from us in different specifications at industry leading price.
- Model: CCV 220
- Actuator: Spring return type, Heavy duty pneumatic Diaphragm
- Type: Normally Close/ Open
- Size Range: 1/2” to 12”
- Body: WCB
- Diaphragm Cover: M.S (Steel Metal)
- Working Press: 150#/ 300#/ 600#
- Working Temp.: 450ºC
- Seating: Metal to Metal and Soft Seated
- Application: Air, Water, Oil, Gas, Steam and Hydraulic oil
- Body : WCB / CF8
- Internal : CF8
- Seat : Metal To Metal
- Diaphragm : Nitrile Canvas Moulded
- Temperature : 450°C / 220°C
- Cylinder : Single Acting
- Barrel : SS
- Ends : Flanged 150#
- Actuator Diaphragm and Multi spring type. Air to open/ Air to close as a standard (piston actuators/ Electrical actuators on request)
- Bonnet : 1. Standard for ('CLD temperature up to 220ºC) / 2. Extended with FINS for ('CLD temperature up to 450ºC)
- Internals S.S. 304 (316 hard facing when required) other materials on request
- Gland Packing’s Teflon/ Graphoil
- Trim Design Contoured parabolic/ Pressure balanced
- Sizes 1/2” to 12”
- Characteristic Linear/ Equal percentage/ on – off (Quick opening)
- End Connection Linear/ Equal percentage/ on – off (Quick opening)
- Pressure Ratings ANSI B16.5 CL 150/ 300/ 600
- Leakage 1. ANSI B16.104 CL lV for metal to metal seating / 2. (Class V and Class Vl leak tightness with soft seating on request)
